XGW-12 Outdoor Switching Station
- Model
- XGW-12
- Category
- Switching equipment
For 10 kV cable ring distribution in industrial, residential and commercial areas. Double-sided doors and insulated wall bushings simplify compact cable routing; typical bolted connectors are rated 630 A. Fully insulated and sealed construction with up to eight incoming/outgoing branches. Designed to resist flooding, contamination, condensation,…
Enquire about this productWhatsApp · +86 138 6774 1009For 10 kV cable ring distribution in industrial, residential and commercial areas. Double-sided doors and insulated wall bushings simplify compact cable routing; typical bolted connectors are rated 630 A. Fully insulated and sealed construction with up to eight incoming/outgoing branches. Designed to resist flooding, contamination, condensation, frost and corrosion. Optional zinc-oxide surge arresters, voltage indicators and cable-fault indicators. Enclosure materials include steel, aluminium-zinc-coated sheet and polished stainless steel.
Original Chinese description
产品优势
XGW-12户外开闭所是近几年来广泛用于电力配网系统中的电缆化工程设备。它的主要特点是双向开门，利用绝缘穿墙套管作为连接母排，具有长度小，电缆排列清楚，三芯电缆不需大跨度交叉等显著优点。一般采用额定电流630A螺栓固定连接式电缆接头，对各种不同的用户要求均能提供令人满意的技术方案。广泛适用于：城市工业园区、城市住宅小区、城市商业中心、矿区和钢铁、汽车、石油、化工、水泥等大型企业以及其他场合的10KV电缆配网系统中环网联接配电网，是城网改造的理想设备。

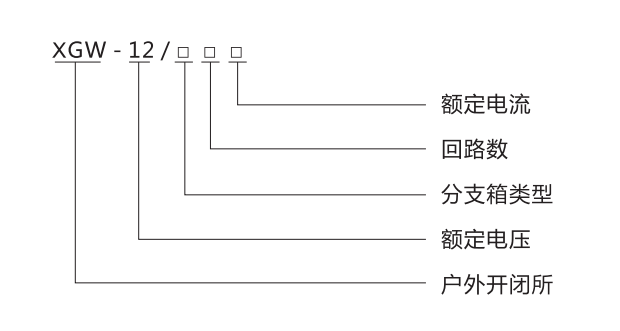

型号含义
结构特点
1全绝缘、全密封、全防护、全工况；
2进出线灵活，实际应用最多有8分支进出线；
3抗洪水、抗污秽、抗凝露、抗凝霜、耐腐蚀；
4体积小、结构紧凑、安装简单、操作方便；
5可带氧化锌避雷器；
6可安装带电指示器，指示操作人员线路带电；
7可安装电缆型故障指示器，便于迅速查找电缆故障；
8有多种箱体材质可选择：普通钢板，镀铝锌钢板和镜面不锈钢等。
